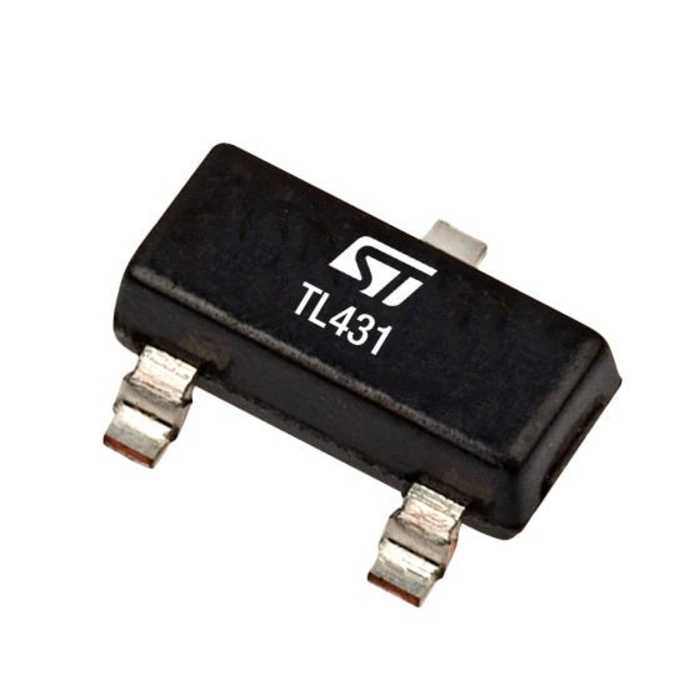

STMicroelectronics Adjustable Shunt Voltage Reference 1 % 3-Pin SOT-23-3, TL431IL3T

RS Stock No.: 151-862Brand: STMicroelectronicsManufacturers Part No.: TL431IL3T
brand-logo
View all in Voltage References

Technical Document

Specifications

Brand

STMicroelectronics

Product Type

Voltage Reference

Package Type

SOT-23-3

Reference Type

Adjustable

Output Voltage

2.5/36 V

Initial Accuracy

1 %

Mount Type

Surface

Topology

Shunt

Maximum Input Voltage

2.55V

Output Current

100mA

Minimum Operating Temperature

40°C

Pin Count

3

Maximum Operating Temperature

125°C

Height

1.12mm

Standards/Approvals

RoHS

Series

TL4

Width

1.4 mm

Length

3.04mm

Automotive Standard

No

Minimum Input Voltage

2.44V
