STMicroelectronics, Thyristor 600 V, 2.5 A 0.2 mA 33 A 1.6 V

Name: STMicroelectronics, Thyristor 600 V, 2.5 A 0.2 mA 33 A 1.6 V
Brand: STMicroelectronics
SKU: 3552835
Availability: LimitedAvailability

RS Stock No.: 355-2835Brand: STMicroelectronicsManufacturers Part No.: TS420-600T

View all in Thyristors

Technical Documents

Specifications

Brand

STMicroelectronics

Rated Average On-State Current Irms

2.5A

Product Type

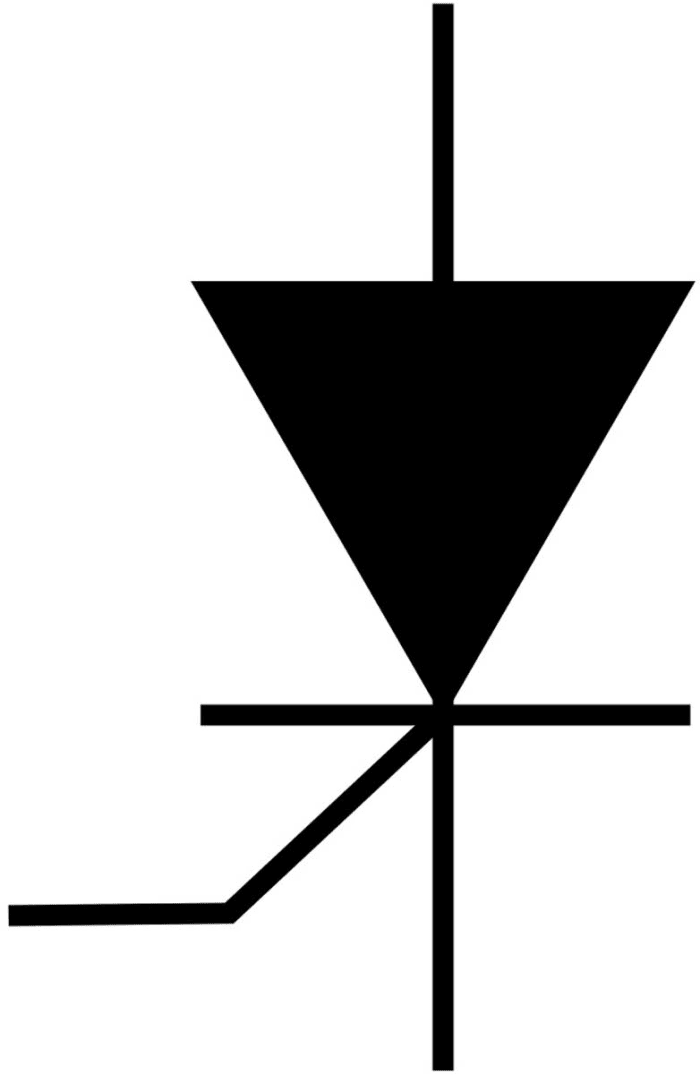

Thyristor

Thyristor Type

SCR

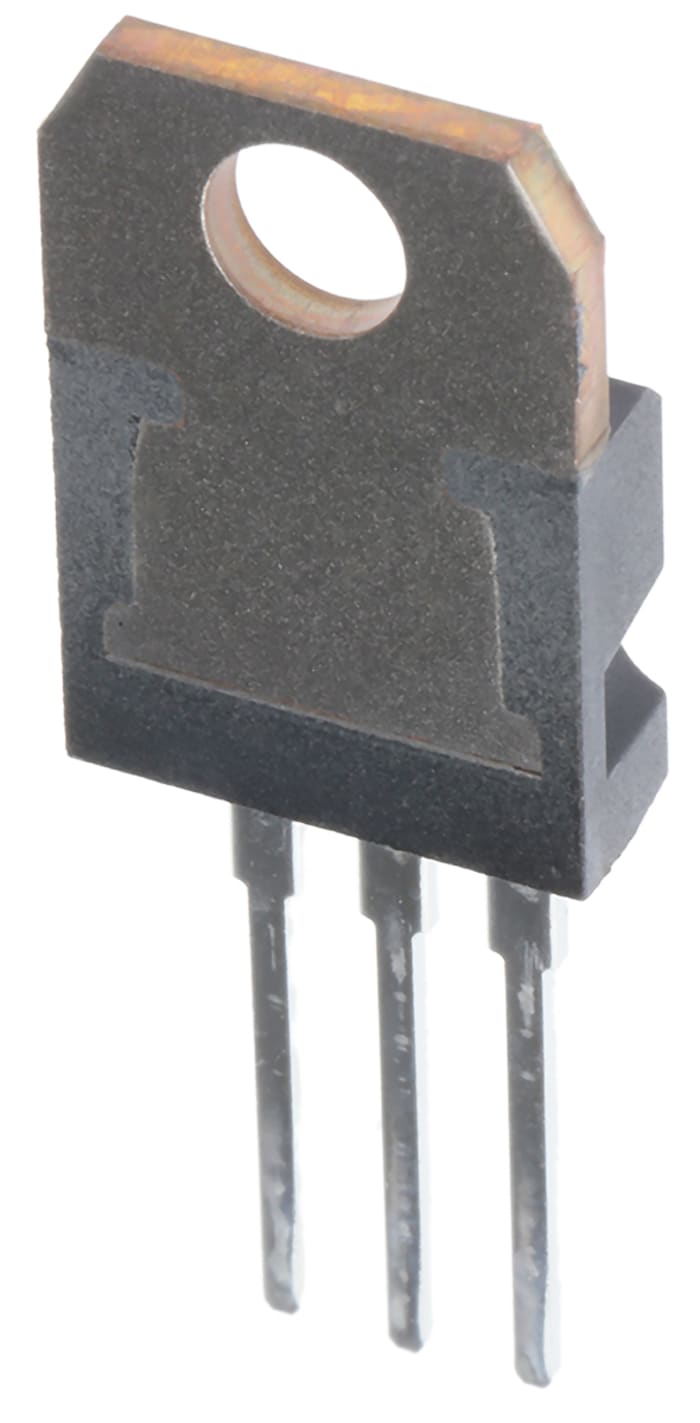

Package Type

TO-220AB

Repetitive Peak Reverse Voltage VDRM

600V

Surge Current Rating

33A

Mount Type

Through Hole

Maximum Gate Trigger Current Igt

0.2mA

Pin Count

Minimum Operating Temperature

-40°C

Maximum Holding Current Ih

5mA

Maximum Gate Trigger Voltage Vgt

0.8V

Maximum Operating Temperature

125°C

Standards/Approvals

Series

4 A SCRs

Repetitive Peak Off-State Current

0.005mA

Peak On-State Voltage

1.6V

Automotive Standard

Product Details

Sensitive Gate Thyristors, STMicroelectronics

A range of Sensitive Gate Thyristors from STMicroelectronics which are especially suitable for applications where the available gate triggering current is limited. Typical uses are in ground fault circuit interrupters and residual current circuit breakers.

Thyristors - STMicroelectronics

STMicroelectronics produces a large range of Thyristors, also known as SCRs or Silicon Controlled Rectifiers, which are suitable for a host of power switching and control applications. Specialized types include sensitive gate thyristors and devices designed for capacitance discharge applications.
