Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
PWM Controller
Maximum Switching Frequency
500kHz
Output Current
1A
Number of Outputs
1

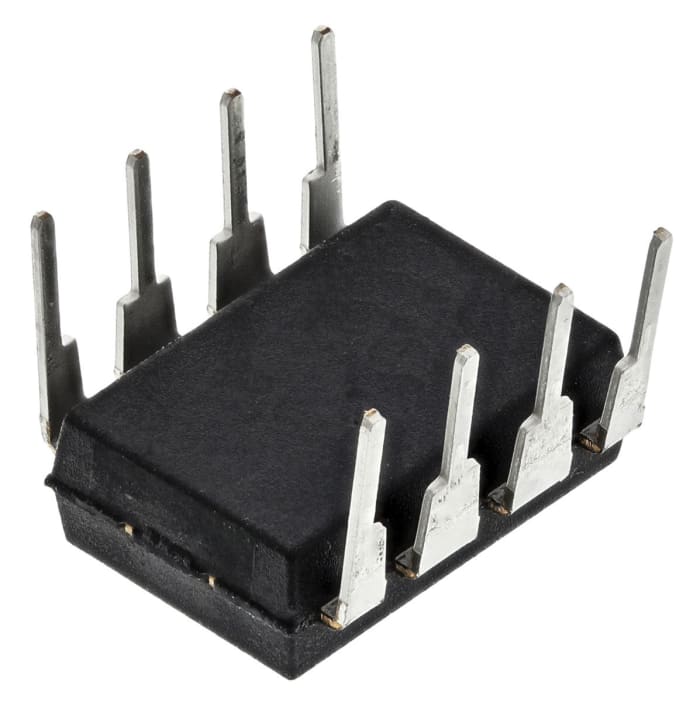

Mount Type
Through Hole
Package Type
PDIP
Pin Count
8
Maximum Duty Cycle
50%
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
150°C
PWM Controller Type
Current Mode
Length
10.92mm
Height
3.32mm
Width
6.6mm
Product Details
Pulse-width modulator (PWM) controllers can support isolated and non-isolated AC-DC and DC-DC switch mode power supplies. They are based on the most popular topologies in both single-ended, such as fly-back, forward or quasi-resonant controllers, and double-ended configurations, such as asymmetrical half-bridge, for Switch Mode Power Supplies (SMPS).
The PMW controllers also integrate a comprehensive set of protections for enhanced robustness and reliability.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
AED 26.75
AED 2.675 Each (In a Pack of 10) (ex VAT)
AED 28.09
AED 2.809 Each (In a Pack of 10) (inc. VAT)
Standard
10
AED 26.75
AED 2.675 Each (In a Pack of 10) (ex VAT)
AED 28.09
AED 2.809 Each (In a Pack of 10) (inc. VAT)
Stock information temporarily unavailable.
Standard
10
| Quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 90 | AED 2.675 | AED 26.75 |
| 100 - 490 | AED 1.819 | AED 18.19 |
| 500 - 990 | AED 1.712 | AED 17.12 |
| 1000 - 1990 | AED 1.391 | AED 13.91 |
| 2000+ | AED 1.391 | AED 13.91 |
