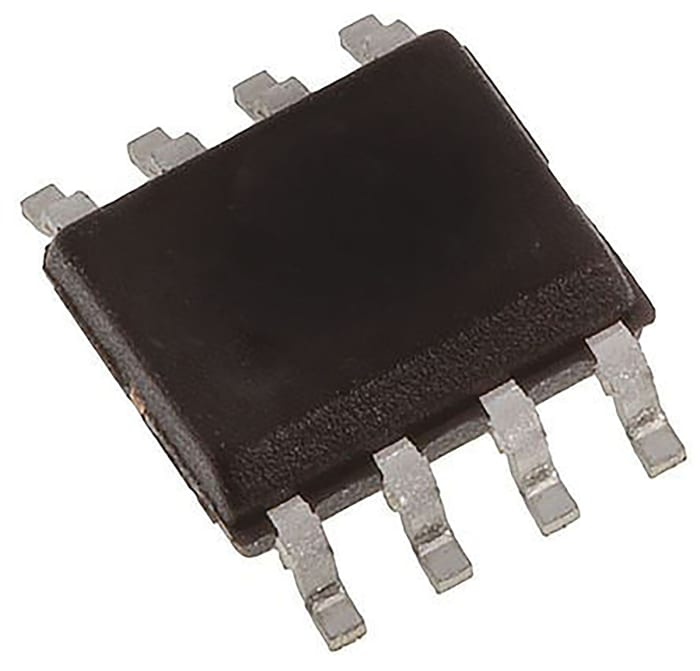

STMicroelectronics VIPER12AS-E, PWM Controller 8-Pin, SOIC

RS Stock No.: 168-5810Brand: STMicroelectronicsManufacturers Part No.: VIPER12AS-E
brand-logo
View all in PWM

Technical Document

Specifications

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

8

Dimensions

5 x 4 x 1.25mm

Length

5mm

PWM Controller Type

Current Mode

Width

4mm

Height

1.25mm

Maximum Operating Temperature

+150 °C

Minimum Operating Temperature

-40 °C

Product details

VIPer® High-Voltage Off-Line Converters, STMicroelectronics

VIPer® high-voltage converters from the mains voltage (230VAC) are fixed frequency offline converter ICs, integrating a PWM controller and a 700V vertical power MOSFET.
Typical applications cover offline power supplies. They are compatible from either the primary side or the secondary side regulation loop.

AC/DC Converters, STMicroelectronics
