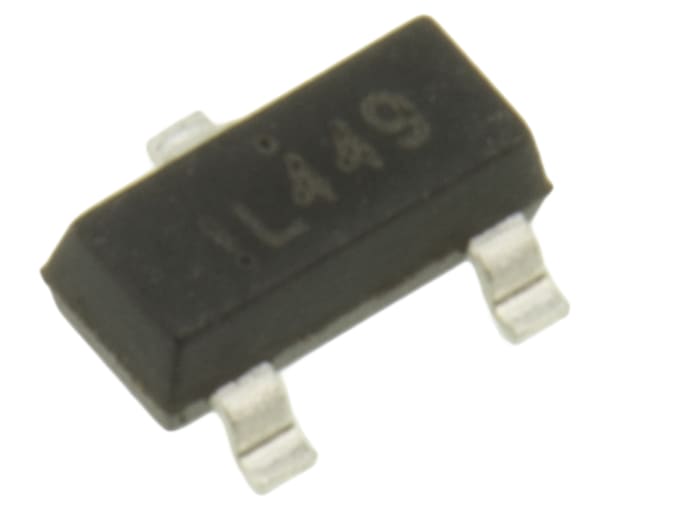

Taiwan Semiconductor 30 V 200 mA Diode Schottky 3-Pin SOT-23 BAT54S RF
Technical Document
Specifications
Brand
Taiwan SemiconductorProduct Type
Diode
Mount Type
Surface
Package Type
SOT-23
Maximum Continuous Forward Current If
200mA
Peak Reverse Repetitive Voltage Vrrm
30V
Diode Configuration
Series
Series
BAT54
Rectifier Type
Schottky
Pin Count
3
Peak Reverse Current Ir
2μA
Minimum Operating Temperature
-55°C
Peak Non-Repetitive Forward Surge Current Ifsm
600mA
Maximum Forward Voltage Vf
1V
Peak Reverse Recovery Time trr
5ns
Maximum Operating Temperature
150°C
Width
1.4 mm
Height
0.95mm
Length
3.05mm
Standards/Approvals
No
Automotive Standard
No
Product details
Schottky Barrier Diodes, up to 1A, Taiwan Semiconductor
Low power loss
Low foward voltage drop
High current capability
Diodes and Rectifiers, Taiwan Semiconductor
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 26.75
AED 0.268 Each (In a Pack of 100) (ex VAT)
AED 28.09
AED 0.281 Each (In a Pack of 100) (inc. VAT)
Standard
100
AED 26.75
AED 0.268 Each (In a Pack of 100) (ex VAT)
AED 28.09
AED 0.281 Each (In a Pack of 100) (inc. VAT)
Stock information temporarily unavailable.
Standard
100
| Quantity | Unit price | Per Pack |
|---|---|---|
| 100 - 400 | AED 0.268 | AED 26.75 |
| 500 - 900 | AED 0.214 | AED 21.40 |
| 1000 - 1900 | AED 0.214 | AED 21.40 |
| 2000 - 3900 | AED 0.214 | AED 21.40 |
| 4000+ | AED 0.214 | AED 21.40 |
