Technical Documents
Specifications
Brand
TDK-LambdaProduct Type
Switching Power Supply
Maximum Output Voltage
24V dc
Number of Outputs
1
Mount Type
Chassis
Power
504W
Minimum Operating Temperature
-25°C
SMPS Output Current
21A
Maximum Operating Temperature
70°C
Depth
41mm
Length
218mm
Weight
1kg
Standards/Approvals
EN 55011-B, EN 55032-B, FCC, IEC 60601-1-2 Ed4, IEC 61000-4-2, IEC/UL/CSA/EN 62368-1, IEC/UL/ES/CSA/EN 60601-1, CE & UKCA
Width
105mm
Efficiency
90%
Series
GWS500
Maximum Input Voltage
373, 265V dc
Output Current
21A
Hazardous Area Certification
No
Minimum Input Voltage
85V ac
Country of Origin
Malaysia
Product Details

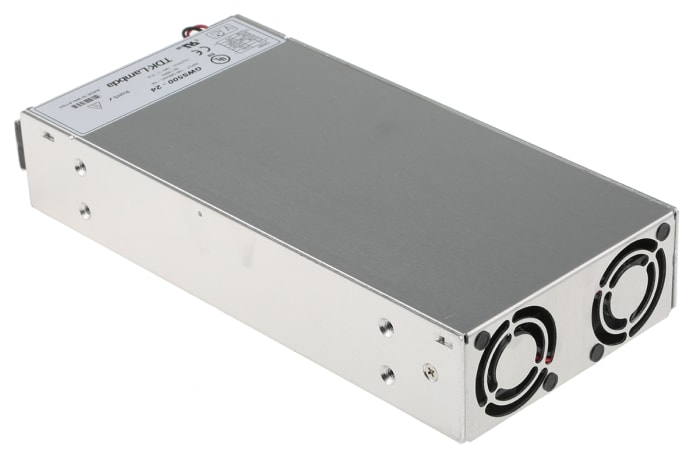

The TDK-Lambda GWS500 series 504W single output AC to DC embedded switch mode power supply has an output current rating of 21A at 24VDC. It has a universal input supply voltage rating from 85VAC to 264VAC and 120VDC to 373VDC. This switch-mode AC-DC power supply has a compact design is convection cooled and offer a high power density. It has low standby power and also designed to target all ErP compliant applications.
Note:
Power derates: above 50°C.
Stock information temporarily unavailable.
AED 1,434.76
AED 1,434.76 Each (ex VAT)
AED 1,506.50
AED 1,506.50 Each (inc. VAT)
1
AED 1,434.76
AED 1,434.76 Each (ex VAT)
AED 1,506.50
AED 1,506.50 Each (inc. VAT)
Stock information temporarily unavailable.
1
