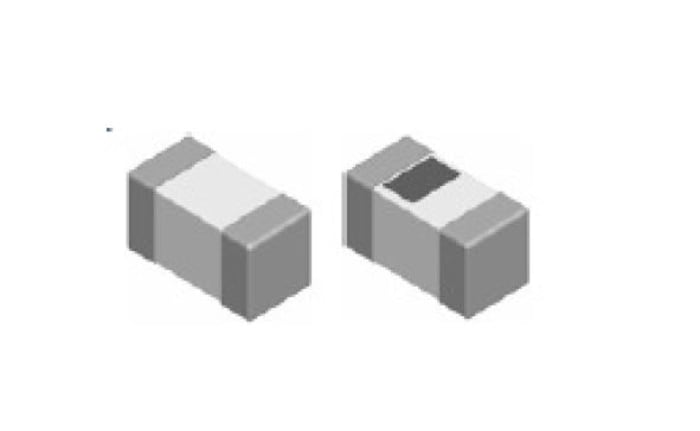

TDK, MLG1005S, 0402 (1005M) Multilayer Surface Mount Inductor 9.1 nH ±5% Multilayer 500mA Idc Q:8
Technical Document
Specifications
Brand
TDKInductance
9.1 nH
Maximum dc Current
500mA
Package/Case
0402 (1005M)
Length
1mm
Depth
0.5mm
Height
0.5mm
Dimensions
1 x 0.5 x 0.5mm
Tolerance
±5%
Maximum DC Resistance
300mΩ
Series
MLG1005S
Maximum Self Resonant Frequency
3.8GHz
Minimum Quality Factor
8
Inductor Construction
Multilayer
Maximum Operating Temperature
+125°C
Minimum Operating Temperature
-55°C
Product details
TDK 0402 MLG1005S Series Multilayer Chip Inductors
SMD inductors with advanced monolithic structure, suitable for high frequency use
Applications: mobile phones, high frequency tuners, bluetooth, W-LAN etc
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
AED 31.50
AED 0.315 Each (In a Bag of 100) (ex VAT)
AED 33.08
AED 0.331 Each (In a Bag of 100) (inc. VAT)
100
AED 31.50
AED 0.315 Each (In a Bag of 100) (ex VAT)
AED 33.08
AED 0.331 Each (In a Bag of 100) (inc. VAT)
100
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price | Per Bag |
|---|---|---|
| 100 - 4900 | AED 0.315 | AED 31.50 |
| 5000+ | AED 0.105 | AED 10.50 |
