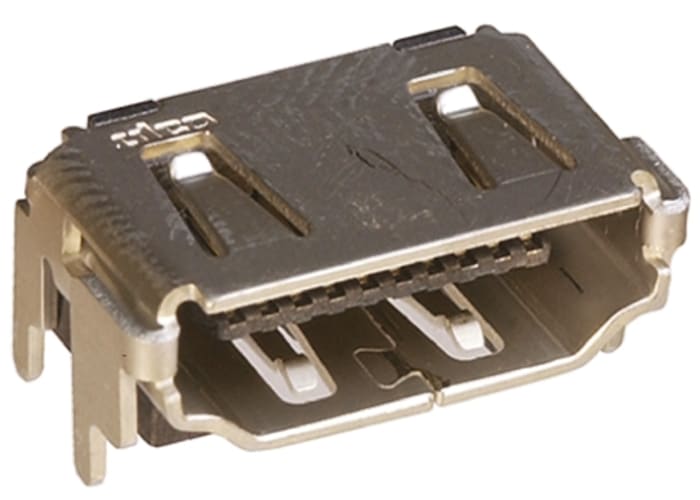

TE Connectivity Type A 19 Way Female Right Angle HDMI Connector
Technical Document
Specifications
Brand
TE ConnectivityGender
Female
Number Of Contacts
19
Size
Type A
Contact Material
Copper Alloy
Contact Plating
Gold over Palladium Nickel
Body Orientation
Right Angle
Termination Method
Solder
Housing Material
Thermoplastic
Colour
Black
Country of Origin
China
Product details
TE Connectivity Type A HDMI Connectors
Type A HDMI PCB surface mount receptacle style connectors with an M3 threaded panel flange. These HDMI PCB surface mount receptacles have a friction lock design for secure electrical contact and have 19 positions and 5 gbps of bandwidth that enable video and multi-channel audio to be supported in a single cable.
Stock number 745-5511 has a mounting flange with an M3 x 0.5 screw size
