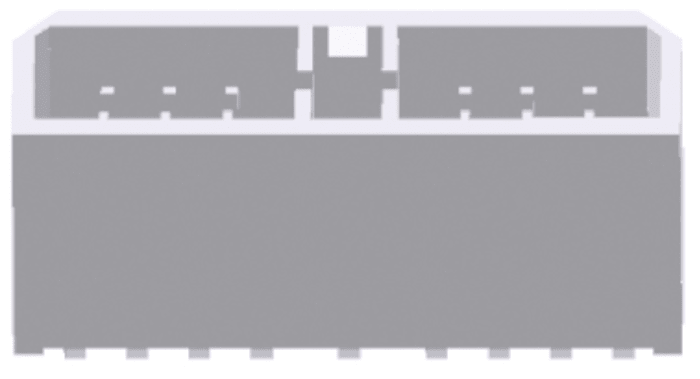

TE Connectivity Multi-Interlock Series Straight Through Hole PCB Socket, 17-Contact, 2 Row, 1.27 mm Pitch Solder
Technical Document
Specifications
Brand
TE ConnectivityNumber of Contacts
17
Product Type
PCB Socket
Number of Rows
2
Sub Type
Wire-to-Board
Pitch
1.27mm
Current
12A
Termination Type
Solder
Housing Material
Thermoplastic
Mount Type
Through Hole
Orientation
Straight
Connector System
Wire-to-Board
Voltage
350 V
Series
Multi-Interlock
Minimum Operating Temperature
-55°C
Contact Gender
Female
Maximum Operating Temperature
105°C
Contact Material
Brass
Contact Plating
Tin
Standards/Approvals
No
Product details
TE Connectivity MIC (Multiple Interlock Connectors) Shrouded PCB Header Connectors
A range of MIC (Multiple Interlock Connectors) shrouded header connectors available as vertical or right angle PCB mounting. These MIC shrouded header connectors have through hole solder terminals, 6mm row spacing and tab terminals.
TE Connectivity MIC (Multiple Interlock Connectors) Range
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 39.16
AED 39.16 Each (ex VAT)
AED 41.12
AED 41.12 Each (inc. VAT)
1
AED 39.16
AED 39.16 Each (ex VAT)
AED 41.12
AED 41.12 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | AED 39.16 |
| 10 - 24 | AED 33.17 |
| 25 - 49 | AED 29.69 |
| 50 - 99 | AED 26.43 |
| 100+ | AED 24.72 |
