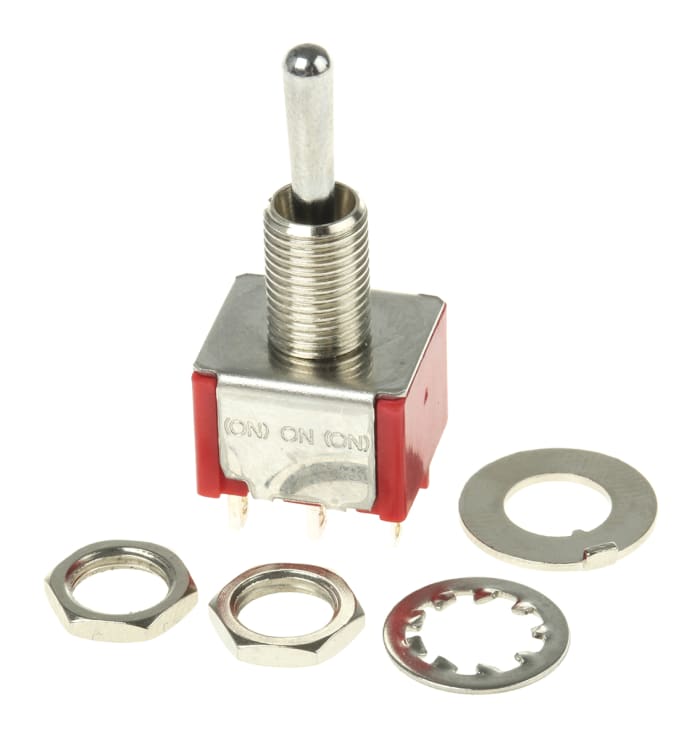

TE Connectivity Toggle Switch, Panel Mount, On-On-On, DP3T, Solder Terminal, 28 V dc, 125 V ac
Technical Document
Specifications
Brand
TE ConnectivityProduct Type
Toggle Switch
Contact Configuration
DP3T
Switch Operation
On-On-On
Switch Contact Current
5A
Mount Type
Panel
Terminal Type
Solder
Illuminated
No
Panel Cutout Size
6.35 mm
Actuator Length
10.41mm
Minimum Operating Temperature
-30°C
Contact DC Voltage
28V dc
Contact AC Voltage
125V ac
Actuator Material
Phenolic
Maximum Operating Temperature
85°C
Switch Configuration
On-On-On
Length
0.5in
Standards/Approvals
RoHS
Width
0.45in
Height
0.35in
Series
Gemini A
Product details
Panel Mount Toggle Switches - Gemini A Series
Break before make contact timing
Epoxy sealed terminals
Stainless steel frame with brass tin plated solder support
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 54.25
AED 54.25 Each (ex VAT)
AED 56.96
AED 56.96 Each (inc. VAT)
Standard
1
AED 54.25
AED 54.25 Each (ex VAT)
AED 56.96
AED 56.96 Each (inc. VAT)
Stock information temporarily unavailable.
Standard
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | AED 54.25 |
| 5 - 9 | AED 48.42 |
| 10 - 24 | AED 47.45 |
| 25+ | AED 46.49 |
