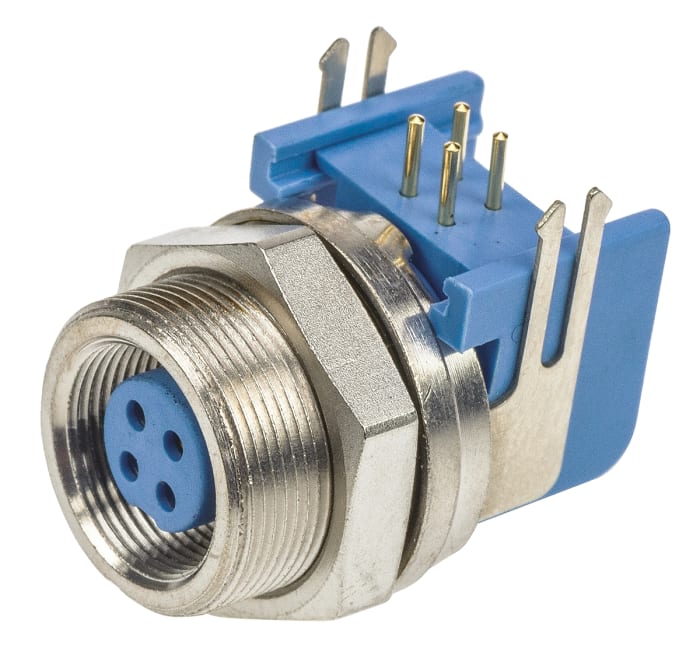

TE Connectivity Circular Connector, 4 Contacts, Panel, Subminiature Connector, Socket, Female, IP65, TRIAD 01 Series
Technical Document
Specifications
Brand
TE ConnectivityNumber of Contacts
4
Product Type
Circular Connector
Mount Type
Panel
Connector Size
Subminiature
Current
3A
Plug/Socket
Socket
Contact Gender
Female
IP Rating
IP65
Orientation
Right Angle
Series
TRIAD 01
Voltage
60 V
Mating Type
Cable
Minimum Operating Temperature
-40°C
Termination Type
Solder
Maximum Operating Temperature
85°C
Housing Material
Polybutylene Terephthalate
Standards/Approvals
No
Contact Plating
Nickel
Contact Material
Copper Zinc Alloy
Product details
PCB Plug & Socket
TE Connectivity's Triad 01 Series Printed Circuit Board (PCB) mount connector is available as either a plug or socket. The connector features a screw-locking connection system for secure mating attenuation with compatible plugs, and boasts very good environmental qualities. Availalble in 3 to 8 pole contact configurations, with male and female variants and straight and right-angle options.
Triad 01 - Metal
TRIAD 01 is a screw-locking subminiature connector possessing excellent shielding properties that meet EMC requirements.,TRIAD 01 is also water and gas tight according to IP65. The range is 100% compatible with the Binder 711//712 ranges.
