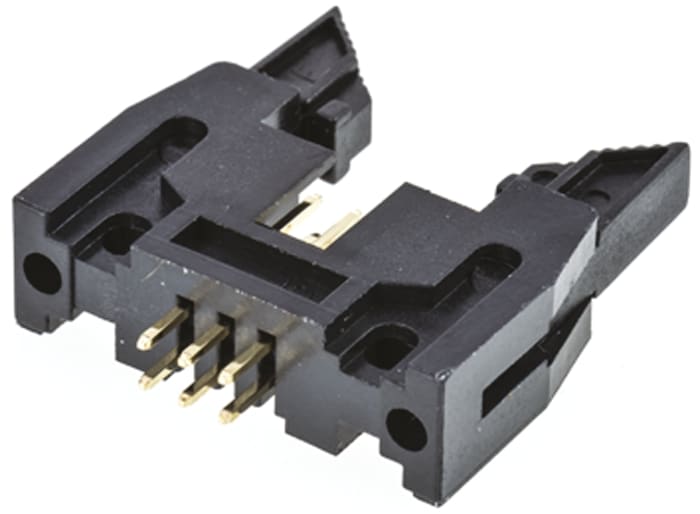

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 16 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded
Technical Document
Specifications
Brand
TE ConnectivitySeries
AMP-LATCH
Pitch
2.54mm
Number Of Contacts
16
Number Of Rows
2
Body Orientation
Straight
Shrouded/Unshrouded
Shrouded
Mounting Type
Through Hole
Connector System
Wire to Board
Termination Method
Solder
Contact Plating
Gold
Current Rating
1.0A
Voltage Rating
250.0 V
Product details
TE Connectivity AMP-LATCH Universal Ejection Style 2.54mm x 2.54mm PCB Headers
AMP-LATCH universal ejection style PCB header connectors with a 2.54 x 2.54 mm centreline. These AMP-LATCH ejection headers have military, centre and dual polarization for accurate mating. Versions of these AMP-LATCH universal headers feature ejector latches which enable a secure connection to and easy removal from the mating IDC ribbon cable receptacle connectors. These AMP-LATCH universal ribbon cable header connectors are available without latches or with a long or short latch style
Connectors with long latches mate with receptacle connectors without strain relief. Connectors with short latches mate with receptacle connectors with strain relief.
Features and Benefits
• Military, centre and dual polarization
• Ejector latches for secure mating connection and easy removal
• Long and short ejection latch options
Applications
These AMP-LATCH PCB connectors are suitable for use in a wide range of applications. Applications include, PCs, business equipment, medical equipment, storage, networking, industrial controls, appliances and electrical testing
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
AED 784.98
AED 18.69 Each (In a Tray of 42) (ex VAT)
AED 824.23
AED 19.624 Each (In a Tray of 42) (inc. VAT)
42
AED 784.98
AED 18.69 Each (In a Tray of 42) (ex VAT)
AED 824.23
AED 19.624 Each (In a Tray of 42) (inc. VAT)
42
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price | Per Tray |
|---|---|---|
| 42 - 42 | AED 18.69 | AED 784.98 |
| 84 - 84 | AED 15.908 | AED 668.12 |
| 126 - 210 | AED 14.018 | AED 588.74 |
| 252 - 966 | AED 12.18 | AED 511.56 |
| 1008+ | AED 11.235 | AED 471.87 |
