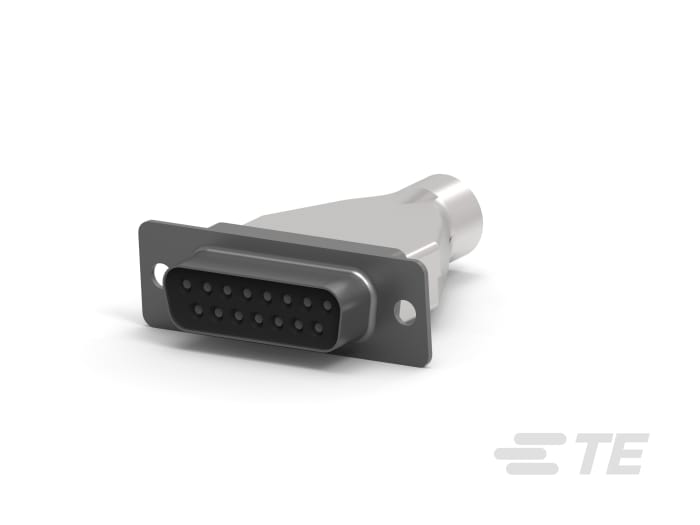

TE Connectivity Amplimite 15 Way Vertical Panel Mount D-Sub Connector, with Mounting Hole Female

RS Stock No.: 678-052Brand: TE ConnectivityManufacturers Part No.: 5747539-1
brand-logo
View all in D Sub Connectors

Technical Document

Specifications

Brand

TE Connectivity

Number of Contacts

15

Product Type

D-Sub Connector

Orientation

Vertical

Mount Type

Panel Mount

Connector Gender

Female

Connector Type D

D-Shaped

D-Sub Shell Size

2

Mounting Hardware

Mounting Hole

Housing Material

Glass Filled Nylon

Minimum Operating Temperature

-55°C

Termination Type

Crimp

Contact Gender

Female

Maximum Operating Temperature

105°C

Standards/Approvals

UL 94V-0

Series

AMPLIMITE

Contact Material

Copper Alloy

Contact Plating

Gold

Country of Origin

United States
