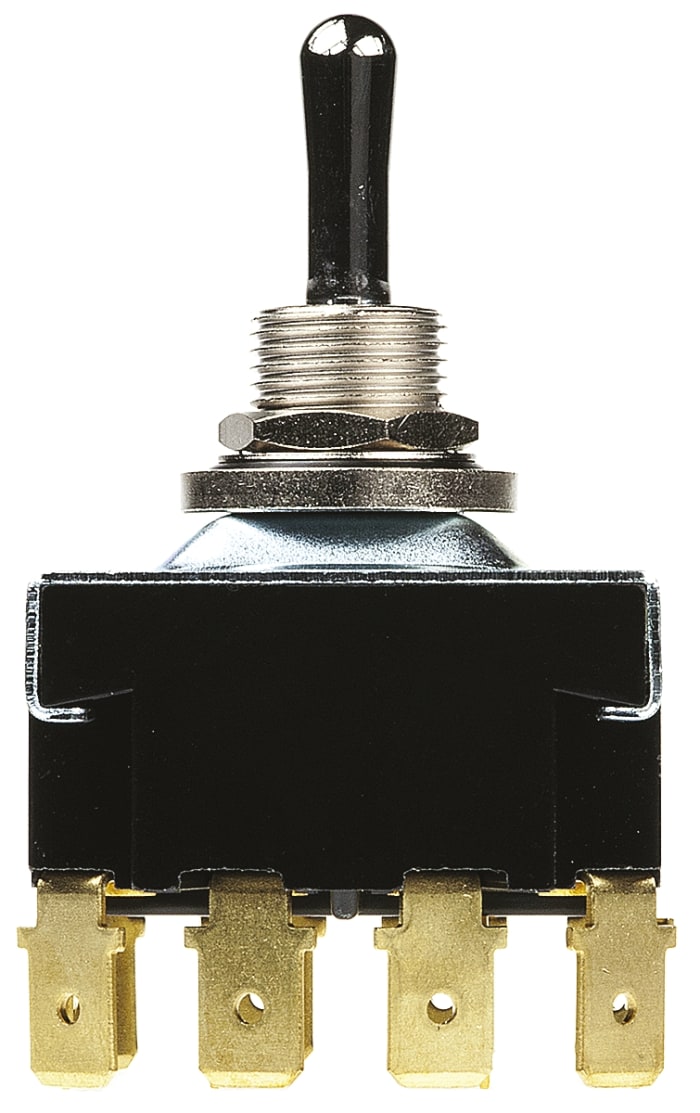

TE Connectivity Toggle Switch, Panel Mount, On-Off-On, 4PDT, Tab Terminal, 30 V dc, 250 V ac
Technical Document
Specifications
Brand
TE ConnectivityProduct Type
Toggle Switch
Contact Configuration
4PDT
Switch Operation
On-Off-On
Switch Contact Current
20A
Mount Type
Panel
Terminal Type
Tab
IP Rating
IP67
Actuator Length
17.5mm
Contact DC Voltage
30V dc
Contact AC Voltage
250V ac
Minimum Operating Temperature
-20°C
Actuator Material
Brass
Maximum Operating Temperature
70°C
Standards/Approvals
RoHS
Series
AW
Mechanical Life
40000Cycles
Country of Origin
Japan
Product details
Waterproof IP67
Toggle switches with silver plated contacts sealed to prevent the ingress of dust or liquids
Connection via 250in. (1/4in.) receptacles or soldering
For biased operation ’(on)’ refers to momentary on position
Brass actuator and Glass Filled Polyester case
Approvals
UL; CSA
