Technical Documents
Specifications
Brand
TE ConnectivityNumber of Contacts
6
Product Type
Circular Connector
Mount Type
Panel Mount
Current
75A
Connector Size
Standard
Plug/Socket
Plug
Contact Gender
Male
IP Rating
IP67
Series
Speedtec 940
Orientation
Right Angle
Voltage
630V
Termination Type
Plug-In
Mating Type
Push Pull
Shell Size
40
Minimum Operating Temperature
-20°C
Housing Material
Zinc Alloy
Maximum Operating Temperature
130°C
Standards/Approvals
Paragraph 6.19.2.2, VDE 0110/EN61984, VDE 0627
Pole Format
3+PE
Contact Plating
Brass
Product Details

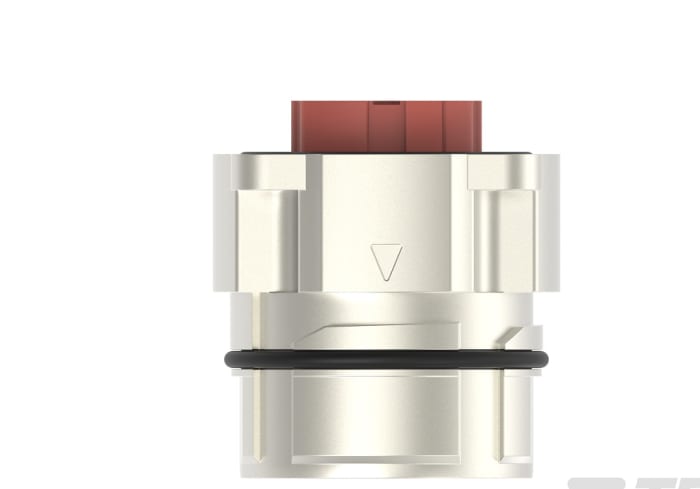

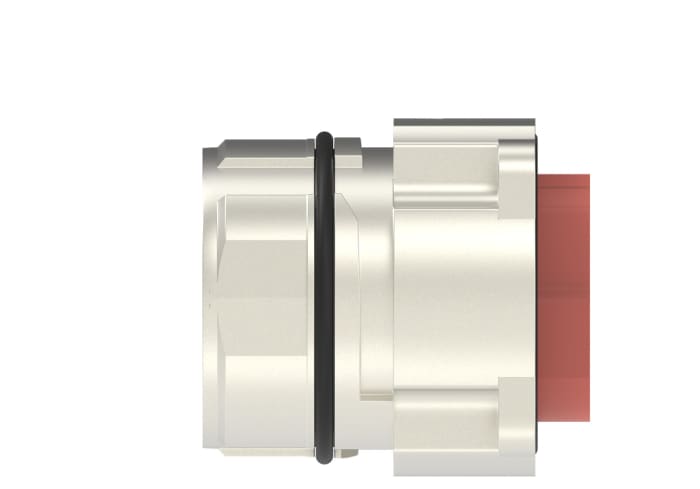

The TE Connectivity are Standard Circular Connectors 940 Receptacle has 6 pin for connection to the equipment with rated current 75 A and 630 v .
Stock information temporarily unavailable.
AED 5,389.82
AED 179.661 Each (In a Box of 30) (ex VAT)
AED 5,659.31
AED 188.644 Each (In a Box of 30) (inc. VAT)
30
AED 5,389.82
AED 179.661 Each (In a Box of 30) (ex VAT)
AED 5,659.31
AED 188.644 Each (In a Box of 30) (inc. VAT)
Stock information temporarily unavailable.
30
| Quantity | Unit price | Per Box |
|---|---|---|
| 30 - 30 | AED 179.661 | AED 5,389.82 |
| 60 - 90 | AED 177.05 | AED 5,311.49 |
| 120 - 210 | AED 173.466 | AED 5,203.97 |
| 240+ | AED 172.134 | AED 5,164.03 |
