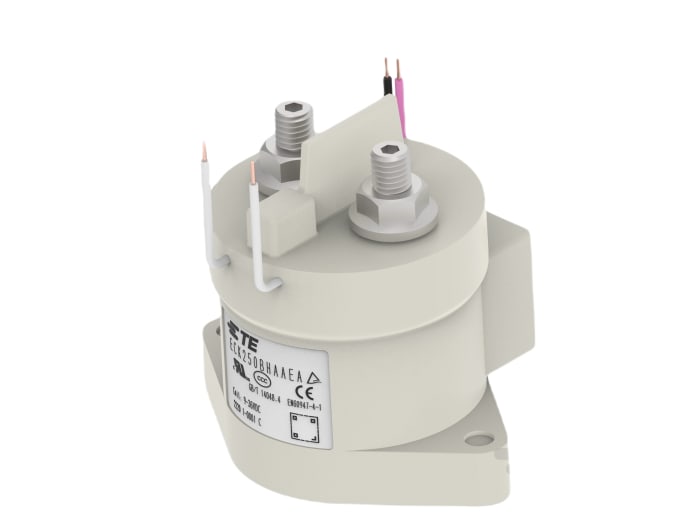

TE Connectivity ECK250B Contactor, 36V dc Coil, 1-Pole, 500 A, 1.7 W, 1 NO, 1000V dc

RS Stock No.: 145-602Brand: TE ConnectivityManufacturers Part No.: ECK250BHAAEA
brand-logo
View all in Contactors

Technical Document

Specifications

Brand

TE Connectivity

Product Type

Contactor

Coil Voltage

36V dc

Number of Poles

1

Contact Voltage

1000V dc

Contact Current

500A

Power Rating

1.7W

Series

ECK250B

Mount Type

Panel

Function

Undervoltage Monitoring

Normal State Configuration

1 NO

Number of Auxiliary Contacts

1

Auxiliary Contact Configuration

1 NO

Terminal Type

Screw

Operational Current Ie

100A

Minimum Operating Temperature

-40°C

Contactor Application

Automated Guided Vehicles (AGV), Battery Energy Storage Systems, EV Charging Stations, Solar Inverter

Maximum Operating Temperature

85°C

Depth

60mm

Length

81mm

Standards/Approvals

CE: 724-00006 UL: E82292 TUV: R50616662 CCC approved

Width

73mm

Pole and Throw Configuration

SPST-NO

Country of Origin

China

View all in Contactors

Stock information temporarily unavailable.

AED 879.22

AED 879.22 Each (ex VAT)

AED 923.18

AED 923.18 Each (inc. VAT)

TE Connectivity ECK250B Contactor, 36V dc Coil, 1-Pole, 500 A, 1.7 W, 1 NO, 1000V dc

1

Available in multiples of 1
1AED 879.22
2AED 1,758.44
3AED 2,637.66
4AED 3,516.88
5AED 4,396.10
6AED 5,275.31
7AED 6,154.53
8AED 7,033.75
9AED 7,912.97
10AED 8,792.19
11AED 9,671.41
12AED 10,550.63
13AED 11,429.85
14AED 12,309.07
15AED 13,188.28

AED 879.22

AED 879.22 Each (ex VAT)

AED 923.18

AED 923.18 Each (inc. VAT)

TE Connectivity ECK250B Contactor, 36V dc Coil, 1-Pole, 500 A, 1.7 W, 1 NO, 1000V dc

Stock information temporarily unavailable.

1

Available in multiples of 1
1AED 879.22
2AED 1,758.44
3AED 2,637.66
4AED 3,516.88
5AED 4,396.10
6AED 5,275.31
7AED 6,154.53
8AED 7,033.75
9AED 7,912.97
10AED 8,792.19
11AED 9,671.41
12AED 10,550.63
13AED 11,429.85
14AED 12,309.07
15AED 13,188.28

Technical Document

Specifications

Brand

TE Connectivity

Product Type

Contactor

Coil Voltage

36V dc

Number of Poles

1

Contact Voltage

1000V dc

Contact Current

500A

Power Rating

1.7W

Series

ECK250B

Mount Type

Panel

Function

Undervoltage Monitoring

Normal State Configuration

1 NO

Number of Auxiliary Contacts

1

Auxiliary Contact Configuration

1 NO

Terminal Type

Screw

Operational Current Ie

100A

Minimum Operating Temperature

-40°C

Contactor Application

Automated Guided Vehicles (AGV), Battery Energy Storage Systems, EV Charging Stations, Solar Inverter

Maximum Operating Temperature

85°C

Depth

60mm

Length

81mm

Standards/Approvals

CE: 724-00006 UL: E82292 TUV: R50616662 CCC approved

Width

73mm

Pole and Throw Configuration

SPST-NO

Country of Origin

China
