Telegartner J68071A0007 MPO, MTP Multimode, Single Mode Duplex Fibre Optic Adapter, 0.5dB Insertion Loss
Technical Document
Specifications
Brand
TelegartnerConnector Type
MPO, MTP
Single/Multimode
Multimode, Single Mode
Simplex/Duplex
Duplex
Fibre Size
125µm
Colour
Black, Metal
Insertion Loss
0.5 dB, 0.7dB
Housing Material
Brass
Connector Type A
MTP
Connector Type B
MPO
Series
TOC
Series Number
J68071A0007
Country of Origin
Germany
Product details

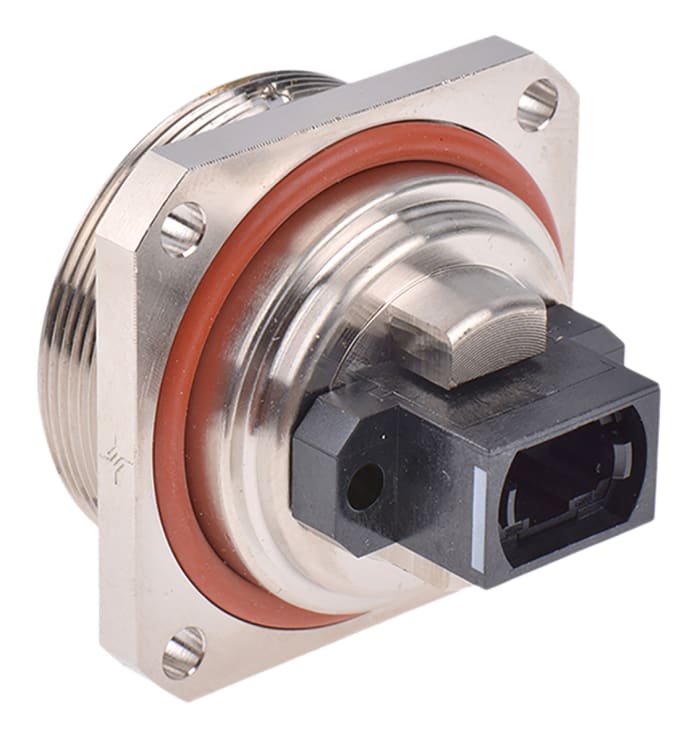

Telegärtner TOC IP68 Outdoor Fibre Optic MPO/MTP Coupler/Adapter
TOC IP68 outdoor fibre optic coupler with MPO/MTP singlemode/multimode adapter. This TOC IP68 outdoor coupler MPO/MTP singlemode/multimode adapter has a nickel plated brass coupler housing, adapter according to IEC 61755-3-1 and is suitable for use with the TOC IP68 MPO/MPT plug set.
Standards
Adapter according to IEC 61755-3-1
Protection class IP68 acc. to IEC 60529
Telegärtner DataVoice TOC IP68 Outdoor Fibre Optic Connectors
DataVoice TOC (Telecommunications Outdoor Connectors) fibre optic LC Duplex and MPO/MTP® connectors with IP68 protection suitable for use in harsh environment machine and plant engineering applications with a temperature range of -40 to +85°C. These TOC IP68 outdoor fibre optic connectors are easy to install with just one turning movement needed to lock and seal the connection.
Pre-terminated cables can be fed into the TOC plugs and an elongated release latch enables the plugs to be mated and unmated easily into SFP transceivers or adapters even in confined installation environments. The IP68 TOC coupler is ideal for line extensions and can be easily integrated without any detrimental effects on the performance of the connection.
