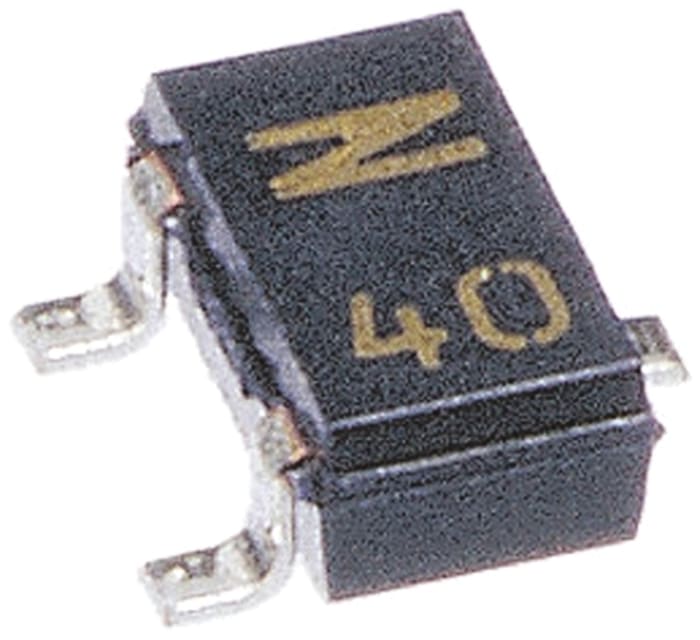

Texas Instruments Fixed Shunt Voltage Reference ±0.1 % 3-Pin SOT-23, LM4040A20IDBZT

RS Stock No.: 809-6349Brand: Texas InstrumentsManufacturers Part No.: LM4040A20IDBZT
brand-logo
View all in Voltage References

Technical Document

Specifications

Brand

Texas Instruments

Product Type

Voltage Reference

Package Type

SOT-23

Reference Voltage

2.05V

Output Voltage

2.048 V

Reference Type

Fixed

Initial Accuracy

±0.1 %

Temperature Coefficient

20 ppm/°C

Mount Type

Surface

Topology

Shunt

Maximum Input Voltage

5V

Output Current

15mA

Pin Count

3

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

No

Series

LM4040

Width

1.4 mm

Height

1.02mm

Length

3.04mm

Minimum Input Voltage

2.05V

Output Type

Fixed

Automotive Standard

No

Product details

Shunt Voltage Reference, Fixed, 1.2V to 2.3V

Voltage References, Texas Instruments

Precison Fixed and Adjustable Voltage Reference ICs utilsing series, shunt or series/shunt topologies and available in both through-hole and surface mount packages. Voltage References are available with initial accuracies of ±0.02 to ±2%.
