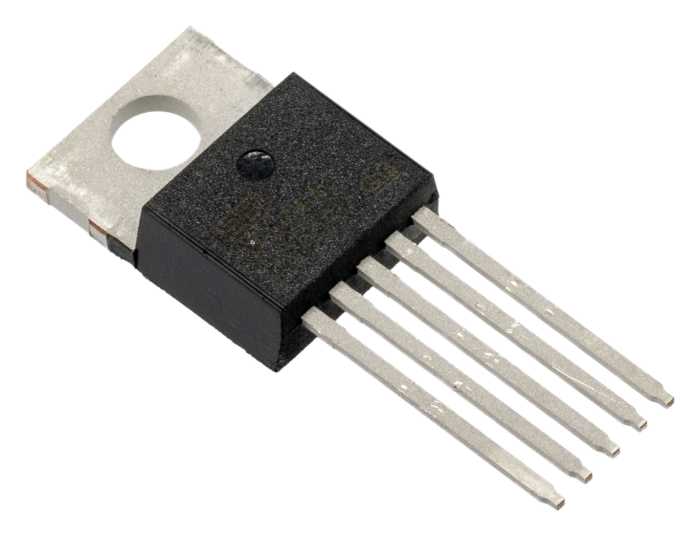

OPA544T Texas Instruments, Operational Amplifier, 1.4 MHz, 5-Pin 35V TO-220
Technical Document
Specifications
Brand
Texas InstrumentsProduct Type
Operational Amplifier
Mount Type
Through Hole
Package Type
TO-220
Number of Channels
1
Pin Count
5
GBP - Gain Bandwidth Product
1.4MHz
Minimum Supply Voltage
10V
Maximum Supply Voltage
35V
Input Bias Current
±100 pA
Minimum Operating Temperature
-40°C
Vos - Input Offset Voltage
±5 mV
Slew Rate
8V/μs
Maximum Operating Temperature
85°C
Height
8.51mm
Length
10.16mm
Standards/Approvals
RoHS
Series
OPA544
Output Current
2A
Automotive Standard
No
Input Offset Current
±100 pA
Product details
High Voltage & High Current Op Amps
Power operational amplifiers from Texas Instruments with high current outputs suitable for driving low impedance and difficult loads. Many of these devices are capable of operating at higher supply voltages than general purpose op amps. Typical applications include driving MOSFETs and power transistors, bridge amplifiers, motor speed controllers, servo amplifiers, power supplies and uses within instrument systems.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 104.75
AED 104.75 Each (ex VAT)
AED 109.99
AED 109.99 Each (inc. VAT)
Standard
1
AED 104.75
AED 104.75 Each (ex VAT)
AED 109.99
AED 109.99 Each (inc. VAT)
Stock information temporarily unavailable.
Standard
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | AED 104.75 |
| 5 - 9 | AED 100.53 |
| 10 - 19 | AED 97.42 |
| 20 - 24 | AED 94.32 |
| 25+ | AED 93.89 |
