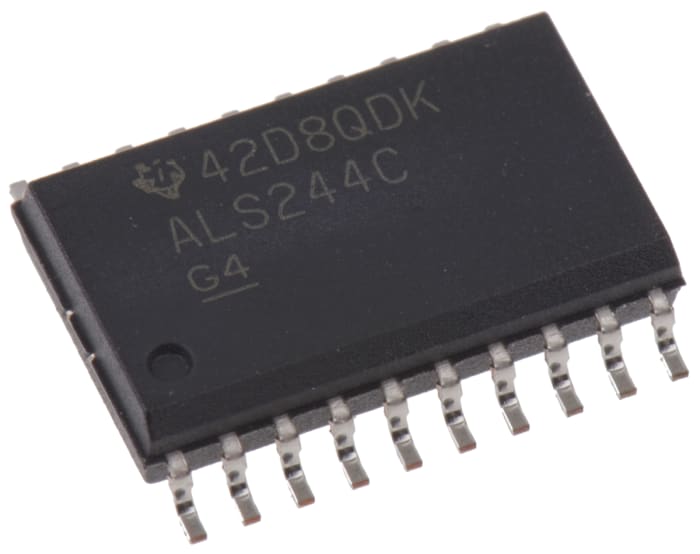

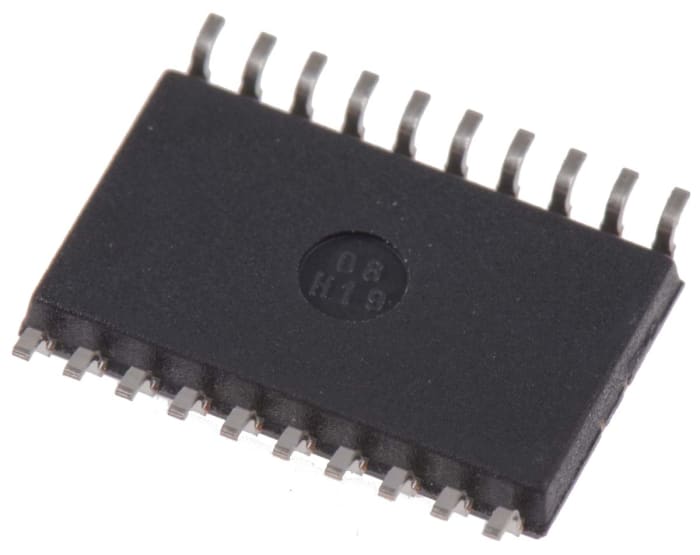

Texas Instruments SN74ALS244CDW 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin SOIC

RS Stock No.: 857-553Brand: Texas InstrumentsManufacturers Part No.: SN74ALS244CDW
brand-logo
View all in Line Interface ICs

Technical Document

Specifications

Brand

Texas Instruments

Product Type

Buffer & Line Driver

Logic Family

ALS

Logic Function

Buffer & Line Driver

Number of Channels

8

IC Type

Buffer & Line Driver IC

Input Type

Single Ended

Output Type

3 State

Polarity

Non-Inverting

Mount Type

Surface Mount

Package Type

SOIC

Minimum Supply Voltage

4.5V

Pin Count

20

Maximum High Level Output Current

-15mA

Maximum Supply Voltage

5.5V

Maximum Low Level Output Current

24mA

Width

7.52 mm

Length

12.8mm

Height

2.35mm

Product details

74ALS Family, Texas Instruments

Advanced Low-Power Schottky Bipolar Logic
Operating Voltage 4.5 to 5.5
Compatibility: Input TTL, Output TTL

74ALS Family
