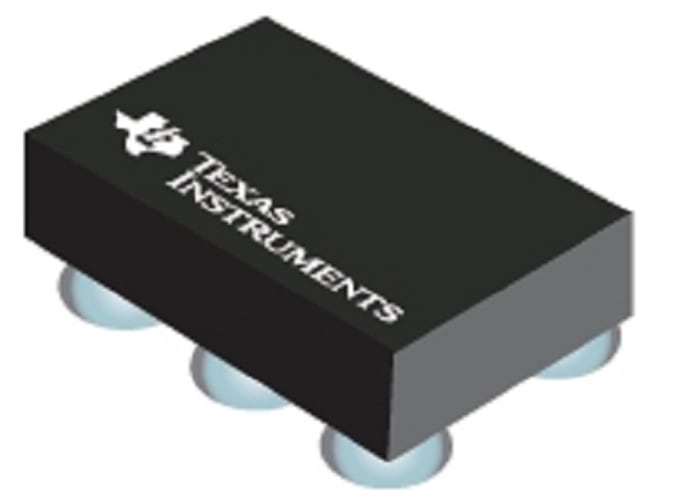

Texas Instruments Low Side/High Side, Load Switch Power Control Switch 6-Pin, DSBGA

RS Stock No.: 252-8591Brand: Texas InstrumentsManufacturers Part No.: TPS22925BNYPHR
brand-logo
View all in Power Switch ICs

Technical Document

Specifications

Brand

Texas Instruments

Power Switch Topology

Low Side/High Side

Product Type

Power Control Switch

Power Switch Type

Load Switch

Number of Outputs

1

Mount Type

Surface

Minimum Supply Voltage

0.65V

Package Type

DSBGA

Maximum Supply Voltage

3.6V

Pin Count

6

Operating Current

3A

Maximum Operating Temperature

105°C

Minimum Operating Temperature

-40°C

Width

0.89 mm

Length

1.39mm

Height

0.4mm

Standards/Approvals

RoHS

Automotive Standard

No

Series

TPS22925
