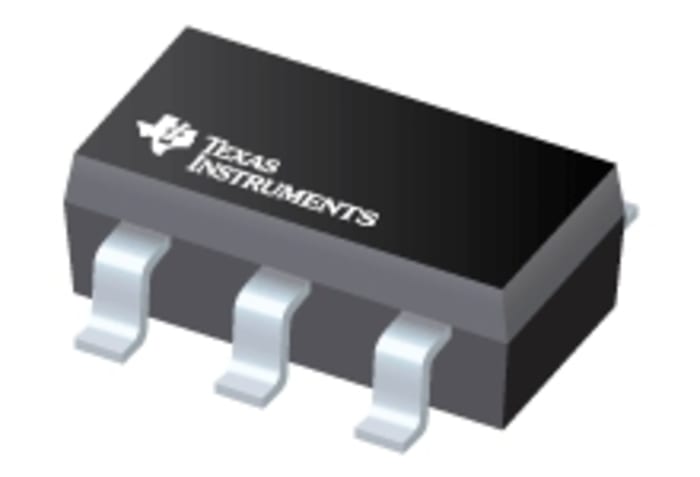

Texas Instruments Low Side, Current Limit Load Power Switch IC 5-Pin, SC-70

RS Stock No.: 252-8766Brand: Texas InstrumentsManufacturers Part No.: TPS22942DCKR
brand-logo
View all in Power Switch ICs

Technical Document

Specifications

Brand

Texas Instruments

Power Switch Topology

Low Side

Product Type

Power Switch IC

Power Switch Type

Current Limit Load

Number of Outputs

1

Mount Type

Surface

Minimum Supply Voltage

1.62V

Package Type

SC-70

Maximum Supply Voltage

5.5V

Pin Count

5

Operating Current

100mA

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-25°C

Width

1.4 mm

Length

2.15mm

Height

1.1mm

Standards/Approvals

RoHS

Automotive Standard

No

Series

TPS2294x
