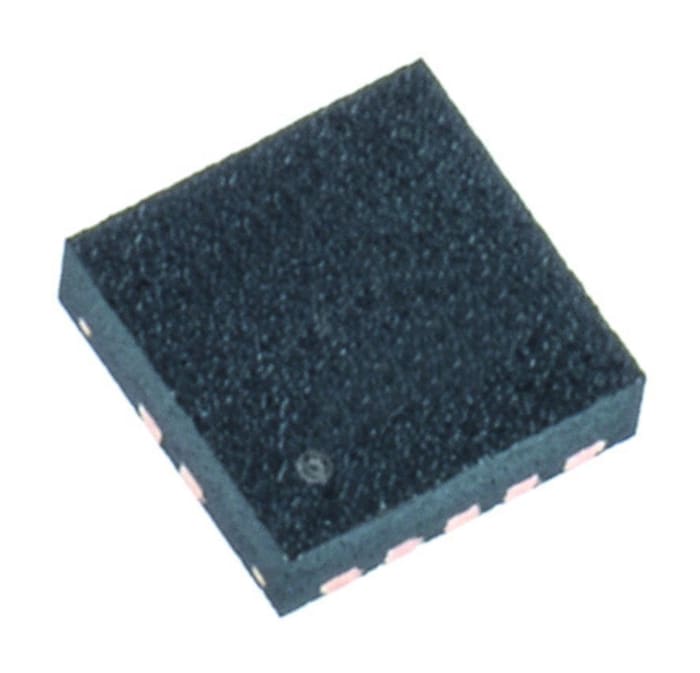

Texas Instruments, Distribution Power Switch IC 10-Pin, SON

RS Stock No.: 162-8784Brand: Texas InstrumentsManufacturers Part No.: TPS2561DRCT
brand-logo
View all in Power Switch ICs

Technical Document

Specifications

Brand

Texas Instruments

Product Type

Power Switch IC

Power Switch Type

Distribution

Switch On Resistance RdsOn

70mΩ

Number of Outputs

2

Power Rating

2.403W

Mount Type

Surface

Minimum Supply Voltage

2.5V

Package Type

SON

Maximum Supply Voltage

6.5V

Pin Count

10

Operating Current

2.5A

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

Width

3.1 mm

Length

3.1mm

Height

0.95mm

Standards/Approvals

RoHS

Automotive Standard

No

Country of Origin

Malaysia

Product details

Precision Adjustable Current-Limited Switch, Texas Instruments

USB Power and Charging Port Controllers, Texas Instruments
