Time Electronics 1021 Multi Function Calibrator
Technical Document
Specifications
Brand
Time ElectronicsBest Accuracy
±0.02 %
Power Source
Battery
Battery Type
AA
Dimensions
200 x 75 x 110mm
Weight
1kg
Height
110mm
Length
200mm
Maximum Operating Temperature
+50°C
Width
75mm
Minimum Operating Temperature
-10°C
Model Number p
1021
Country of Origin
United Kingdom
Product details

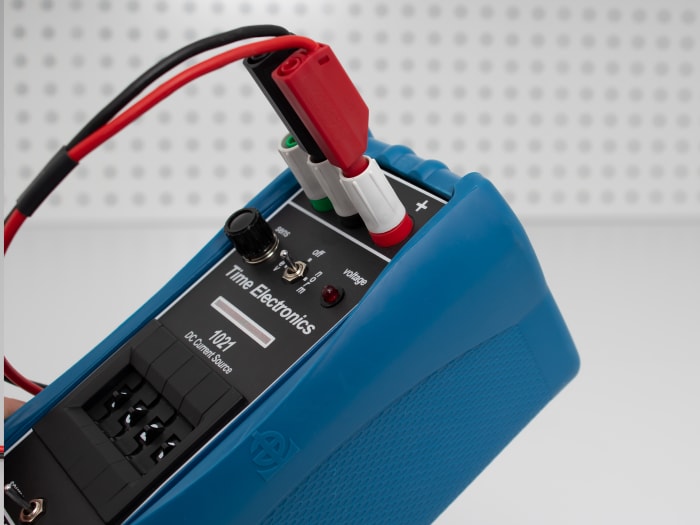

1021 Current Source
A portable, high stability, instrument deriving its accuracy from a precision aged reference diode and low temperature coefficient metal film resistors. The instrument incorporates overload protection and LED indication of insufficient drive voltage. A Null measuring facility allows dc current to be measured to 0.1μA resolution. Supplied in a sturdy carrying case.
Stock information temporarily unavailable.
Please check again later.
AED 5,538.50
AED 5,538.50 Each (ex VAT)
AED 5,815.42
AED 5,815.42 Each (inc. VAT)
Calibration type
No Calibration
1
AED 5,538.50
AED 5,538.50 Each (ex VAT)
AED 5,815.42
AED 5,815.42 Each (inc. VAT)
Calibration type
No Calibration
1
