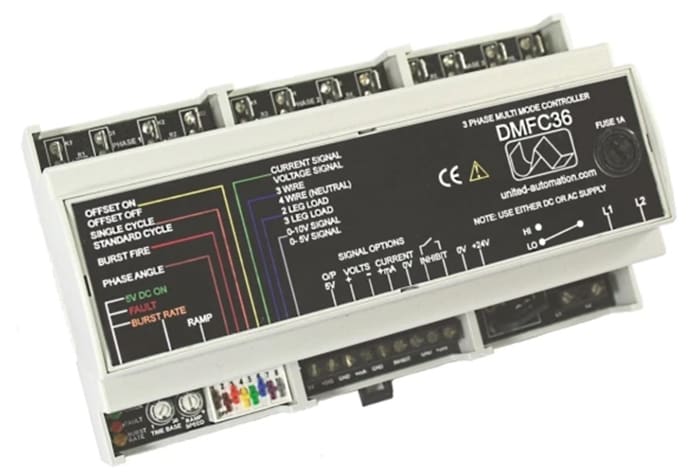

United Automation DMFC36, Driver Module

Multi Mode, Phase-Angle & Single/Dual Cycle Burst Firing Circuit, DMFC-36

The DMFC-36 module has been designed to offer Phase-Angle or Burst Fire Control in firing a thyristor assembly or complete thyristor controller for driving resistive loads. In Single-Cycle or Dual-Cycle mode, these modules use the fastest burst rates possible, providing very accurate control and minimising Harmonic distortion & Flicker within the system.

• Includes a Transformer
• Standard Din Rail Mount
• On Board Indication of Power, Burst-Rates & Fault Conditions
• Phase-Angle, or Burst Fire Control
• Single-Cycle / Dual Cycle Burst Fire modes of control or adjustable Standard Burst Firing
• Soft-start (1 to 30 seconds)
• Inhibit Input
• Wide Range of Control Options: 0-5V, 0-10V, 1-5V, 2-10V, 0-20mA, 4-20mA, Manual Potentiometer
• Isolated Pulse transformer outputs
• On Board Protection Fuse

The number of complete mains cycles during fixed repeating periods (typically 1 to 10 seconds) is varied, thus altering the duty cycle or on-/off-time ratio. Trigger pulses coincide with the zero-crossing times of the mains supply thus ensuring no RFI is produced when using resistive loads.
