VCC Panel Mount 1-Way Straight Rigid LED Light Pipe Clear, 3 mm LED Included included
Technical Document
Specifications
Brand
VCCFlexible/Rigid
Rigid
Product Type
LED Light Pipe
Orientation
Straight
Length
6.4mm
Lens Size
3 mm
Mount Type
Panel Mount
Number of Ways
1
LED Included
Yes
Lens Colour
Clear
Inside Diameter
2.6 mm
Number of Light Pipes
1
Light Pipe Shape
Round
Outside Diameter
3 mm
Standards/Approvals
RoHS
Configuration Rows x Columns
1 x 1
Series
LFB
Country of Origin
Mexico
Product details

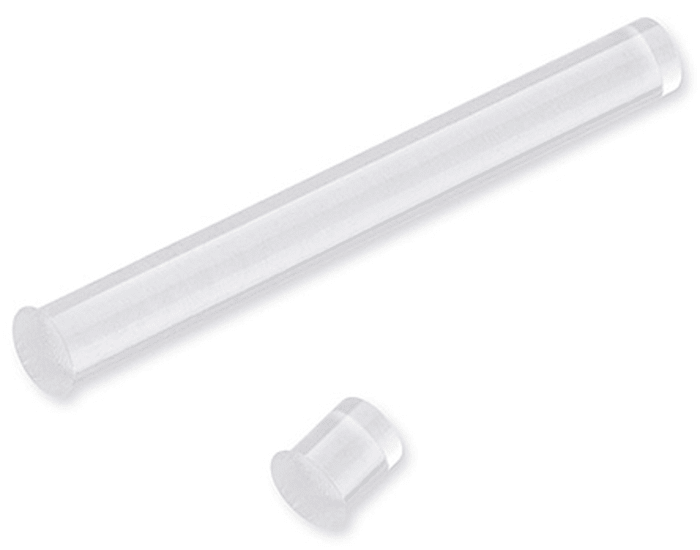

LFB Series Press Fit Low Profile 3mm Light Pipes
The VCC LFB Series of 3mm low profile rigid light pipes feature a diffused round surface to provide uniform brightness and a wide viewing angle of 120°. They are front panel press-fit mounting with crushable ribs that simplify installation. The light pipes are available in a wide variety of lengths to accommodate differing PCB to front panel distances. An optional retainer (RTN112) for high-vibration environments is available for LFB Series of light pipes; see RS 137-1436.
• Low profile, flush panel design
• For use with SMT or through-hole LEDs
• Optical grade polycarbonate for maximum light transmission
• Wide range of standard lengths
• Wide viewing angle of 120°
• Frosted surface diffuses light and provides uniform brightness
LED Light Pipes - VCC
Stock information temporarily unavailable.
AED 50.82
AED 2.033 Each (In a Pack of 25) (ex VAT)
AED 53.36
AED 2.135 Each (In a Pack of 25) (inc. VAT)
25
AED 50.82
AED 2.033 Each (In a Pack of 25) (ex VAT)
AED 53.36
AED 2.135 Each (In a Pack of 25) (inc. VAT)
Stock information temporarily unavailable.
25
| Quantity | Unit price | Per Pack |
|---|---|---|
| 25 - 25 | AED 2.033 | AED 50.82 |
| 50 - 100 | AED 1.98 | AED 49.49 |
| 125 - 225 | AED 1.391 | AED 34.78 |
| 250 - 475 | AED 1.284 | AED 32.10 |
| 500+ | AED 1.07 | AED 26.75 |
