Technical Documents
Specifications
Brand
VishayProduct Type
Optocoupler
Mount Type
Surface
Maximum Forward Voltage
1.65V
Number of Channels
1
Packaging
SMD
Number of Pins
4
Package Type
Surface Mount
Typical Rise Time
2μs
Isolation Voltage
5300Vrms
Minimum Operating Temperature
0°C
Typical Fall Time
2μs
Standards/Approvals
No
Series
SFH
Automotive Standard
No
Product Details

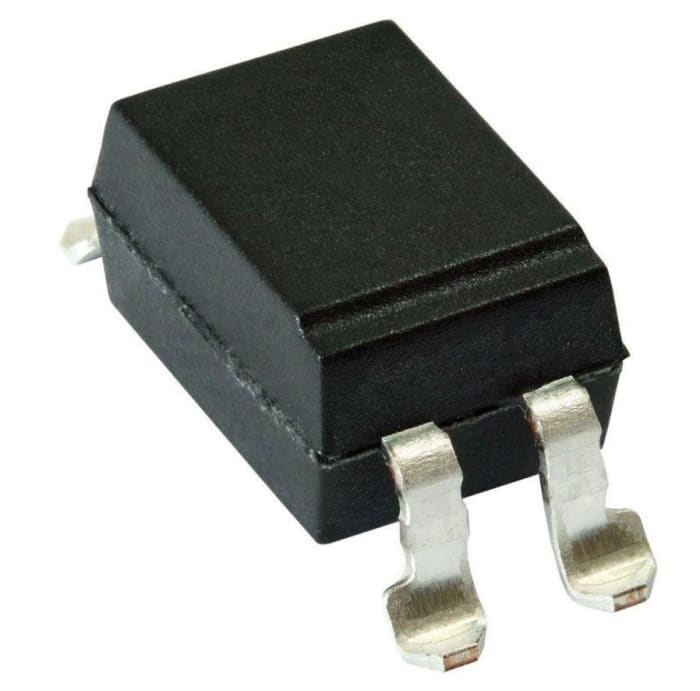

The Vishay Optocoupler feature a high current transfer ratio, low coupling capacitance and high isolation voltage. These couplers have a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 or SMD package. The coupling devices are designed for signal transmission between two electrically separated circuits. The couplers are end-stackable with 2.54 mm lead spacing. Creepage and clearance distances of > 8 mm are achieved with option 6.
Stock information temporarily unavailable.
AED 160.50
AED 1.605 Each (In a Tube of 100) (ex VAT)
AED 168.52
AED 1.685 Each (In a Tube of 100) (inc. VAT)
100
AED 160.50
AED 1.605 Each (In a Tube of 100) (ex VAT)
AED 168.52
AED 1.685 Each (In a Tube of 100) (inc. VAT)
Stock information temporarily unavailable.
100
| Quantity | Unit price | Per Tube |
|---|---|---|
| 100 - 400 | AED 1.605 | AED 160.50 |
| 500+ | AED 1.016 | AED 101.65 |
