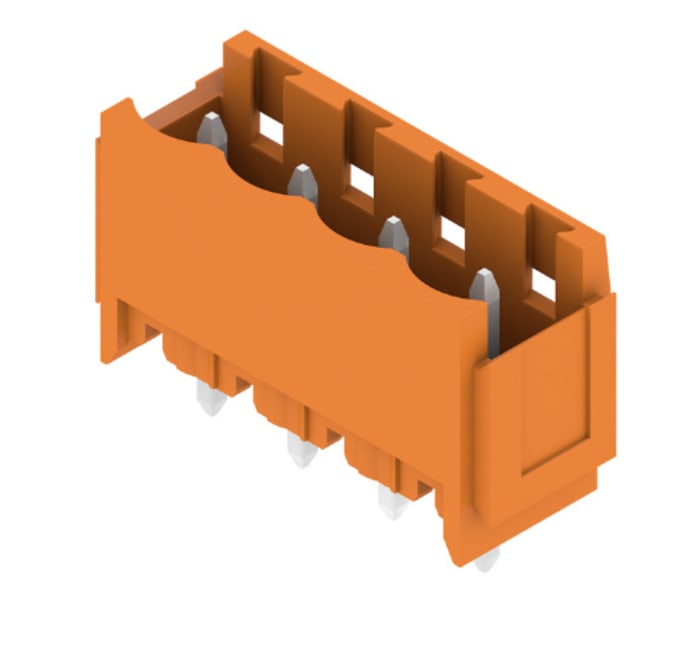

Weidmuller OMNIMATE SL Series Straight Through Hole PCB Header, 4 Contact(s), 5.08mm Pitch, 1 Row(s), Shrouded

RS Stock No.: 209-6996Brand: WeidmüllerManufacturers Part No.: 1524360000
brand-logo
View all in PCB Headers

Technical Document

Specifications

Brand

Weidmüller

Series

OMNIMATE SL

Pitch

5.08mm

Number Of Contacts

4

Number Of Rows

1

Body Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

Wire to Board

Mounting Type

Through Hole

Termination Method

Solder

Contact Material

Brass

Current Rating

12.0A

Voltage Rating

380.0 V , 450.0 V dc

Country of Origin

Germany

Product details

Closed Ends Vertical PCB Header Connectors

Rated at 8A / 250Vac

Approvals

UL (E 60693); CSA (12400)

5.08mm Pitch -Weidmüller Omnimate Range
