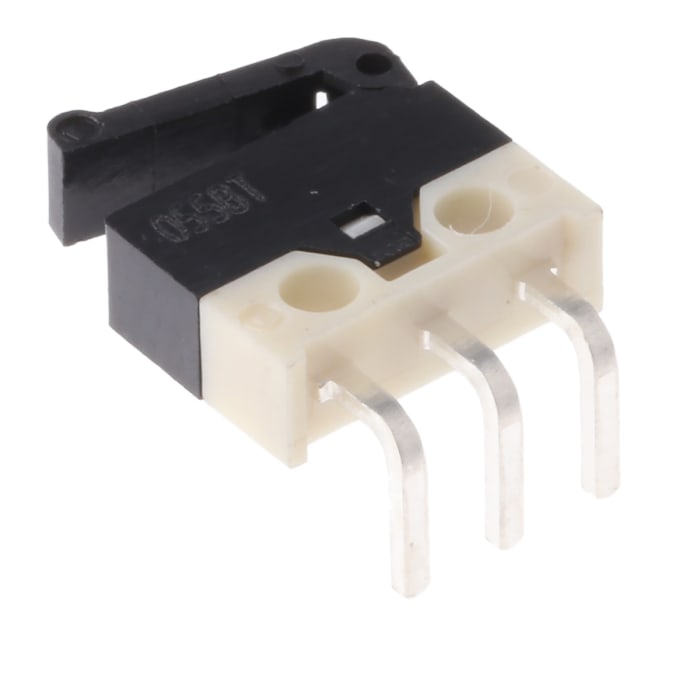

ZF Lever Subminiature Micro Switch, Left Angle PCB Terminal, 500 mA @ 30 V dc, SPDT

RS Stock No.: 706-4174Brand: ZFManufacturers Part No.: DH2C-C5PADistrelec Article No.: 30161399
brand-logo
View all in Micro Switches

Technical Document

Specifications

Brand

ZF

Actuator Type

Lever

Terminal Type

Left Angle PCB

Contact Current Rating

500 mA @ 30 V dc

Contact Configuration

SPDT

Operating Force

0.49 N

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+70°C

Contact Material

Gold Plated Brass

Operating Temperature Range

-25 → +70°C

Product details

Subminiature Microswitch - DH Series

Ultraminiature dimensions : 8.2mm x 2.7mm x 6.2mm
Designed for low switching currents and voltages
Can be fitted to circuit boards in upright position or horizontally with formed terminals
