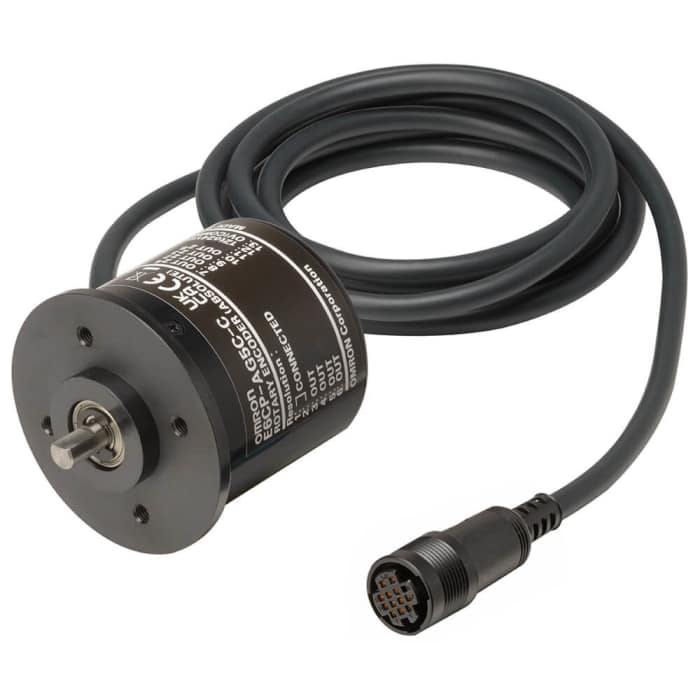

Omron E6CP Series Absolute Encoder 24V dc, 256 ppr ppr, Open Collector Signal, Solid Type, 6 mm Shaft

Omron E6CP Series Encoder, 256 Pulses Per Revolution, 12-24V Supply Voltage - E6CP-AG5C-C 256 2M

This encoder is a high-performance absolute model designed for precise position sensing in various applications. With an external diameter of 50mm, this encoder offers a robust solution tailored for automation and control systems. It operates efficiently across a supply voltage range of 12-24V DC and delivers reliable performance in demanding environments.

Features & Benefits

• High-resolution absolute encoder providing 256 pulses per revolution
• Solid shaft construction ensures durability and stability
• Open collector output enables easy integration into different systems
• Capable of operating at maximum speeds of 1000 rpm
• IP50 rated encoder offers protection against dust ingress
• Lightweight design using a plastic body for reduced weight

Applications

• Utilised in industrial automation for precise position feedback
• Employed in robotics for accurate movement and control
• Suitable for use in CNC machines and similar
• Commonly integrated into motor drives for enhanced performance
• Utilised in packaging machinery for position detection

What is the maximum response frequency of this device?

The encoder has a maximum response frequency of 25 kHz, ensuring swift performance for various applications.

Can this encoder operate in extreme temperature conditions?

This device operates effectively in ambient temperatures ranging from -10°C to 55°C, suitable for various environments.

What is the importance of the open collector output feature?

The open collector output allows for flexible connection options and can easily interface with different control systems and devices, enhancing usability.

How does the resolution impact performance in practical applications?

The 256 pulses per revolution resolution enables precise position measurement, which is crucial for tasks requiring high accuracy in motion control and positioning.

What type of connection method does this encoder support?

The encoder supports both pre-wired and connector models, allowing for versatile installation options to meet diverse project needs.

Absolute Rotary Encoders

• Economy absolute encoders at about the same price as an Incremental Encoder
• Ideal for robot limit signals
• High precision detection of automatic machine timing
• Plastic body

Omron Absolute Rotary Encoders
