STEGO Door Interlock Push Button Switch, CO 10 A IP20, -20 °C, 85 °C
Technical Document
Specifications
Brand
STEGOProduct Type
Door Interlock Push Button Switch
Contact Configuration
CO
Contact Current
10A
Terminal Type
Clamp Connection
IP Rating
IP20
Mount Type
Screw
Mechanical Life
10000Cycles
Length
64mm
Height
87mm
Standards/Approvals
CE, RoHS
Series
DS013
Maximum Operating Temperature
85°C
Minimum Operating Temperature
-20°C
Country of Origin
France
Product details
Stego Door Switch

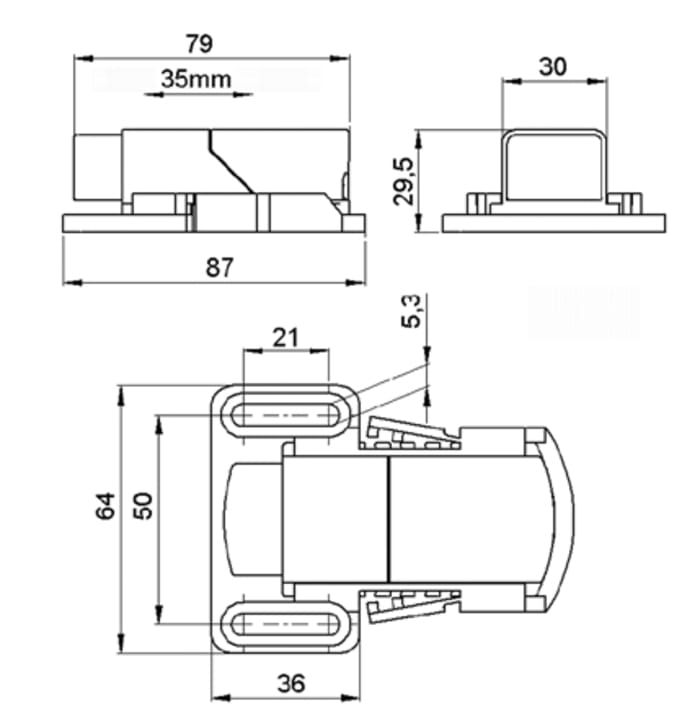

These door switches from Stego have tool free adjustable switch postioning. The available adjustment range comprises: 35 mm housing, 21 mm slotted mounting holes and a further 8mm of actuator travel
High switching capacity
Double strain relief
Suitable for 025 LED lamps
Stock information temporarily unavailable.
AED 219.72
AED 219.72 Each (ex VAT)
AED 230.71
AED 230.71 Each (inc. VAT)
1
AED 219.72
AED 219.72 Each (ex VAT)
AED 230.71
AED 230.71 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | AED 219.72 |
| 5 - 19 | AED 211.59 |
| 20 - 49 | AED 204.10 |
| 50 - 149 | AED 198.00 |
| 150+ | AED 194.58 |
