ZF Button Micro Switch, Lead Terminal, 6A, 250 V ac, SPCO, IP67

Name: ZF Button Micro Switch, Lead Terminal, 6A, 250 V ac, SPCO, IP67
Brand: ZF
SKU: 8486354
Availability: LimitedAvailability

RS Stock No.: 848-6354Brand: ZFManufacturers Part No.: DC1C-C4AADistrelec Article No.: 301-61-387

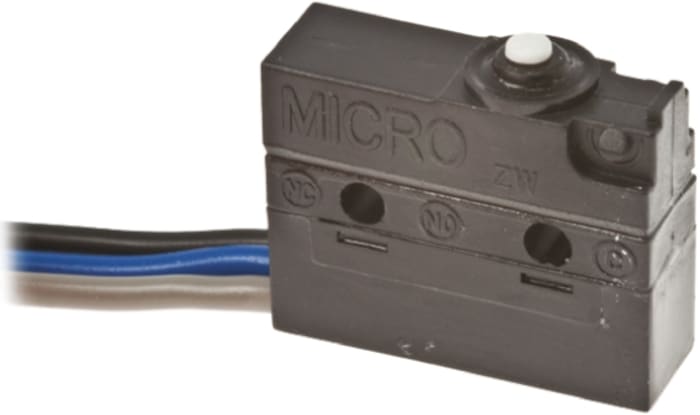

Image representative of range only

View all in Micro Switches

Technical Documents

Specifications

Brand

Product Type

Micro Switch

Actuator Type

Button

Terminal Type

Lead

Switch Contact Current

Housing Material

Polyethylene Terephthalate, Polybutylene Terephthalate

Contact Configuration

SPCO

IP Rating

IP67

Operating Force

200cN

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

120°C

Microswitch Type

DC Subminiature

Contact AC Voltage

250V ac

Mechanical Life

1000000Operations

Hazardous Area Certification

Standards/Approvals

RoHS

Series

DC Subminiature

Product Details

IP67 V4 Microswitches (DC1 6A)

Sealed switch with IP67 protection
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Operating temperature range -40 → 120°C
Maximum operating temperature for pre-wired versions 105°C Height 11.65mm, Width 20mm, Depth 6.5mm

Approvals
ENEC; UL

Approvals

ENEC; UL

IP67 V4 Microswitches (DC1 6A)

Sealed switch with IP67 protection
Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm2) lead
Housing material PET/PBT (UL 94V-0)
POM (T85); PBT (T120) actuator
Operating temperature range -40 → 120°C
Maximum operating temperature for pre-wired versions 105°C Height 11.65mm, Width 20mm, Depth 6.5mm

Approvals
ENEC; UL

Approvals

ENEC; UL
